Ex-Proof Light D Series

Technical Specs

Rated Wattage: 20W/40W/60W/80W/100W/150W/200W

Rated Voltage: AC100-277V (by driver or by IC) or AC200-480V (<65W) Or DC12-48V

Luminaire Efficacy: 140lm/W

Lumen Output: 2800lm – 28,000lm

CCT: 2200-7000K Optional

CRI: Ra 80

Beam Angle: 40°/60°/90°/120°

IP Rating: IP66

Warranty: 5 Years

Applications: Oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, hazardous locations, etc.

Certification

ETL

Product overview

This explosion-proof luminaire offers the widest range of ATEX and IECEx certified hazardous area lighting for safe use in potentially explosive atmospheres worldwide. A flameproof and impact-resistant high bay for lighting outdoor pathways, walkways and corridors in hazardous areas. It provides safe and reliable lighting in Zones 1, 2, 21 and 22 hazardous areas. Constructed of a durable, copper free aluminum housing. IP66 rating provide further protection from impact, vibration, and the elements. These light fixtures are designed for targeted indoor and outdoor lighting where corrosive, wet, dusty, hot and/or cold conditions exist. Common installations include oil and gas production facilities, chemical plants, and heavy industrial applications.

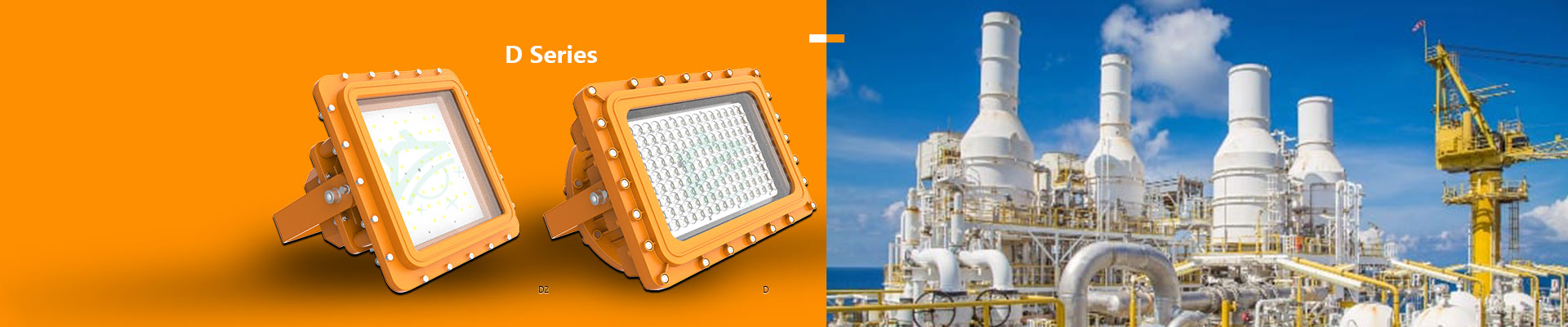

D Series-Ex-Proof Light

• D1:100W,150W,200W

• D2:20W,40W,60W,80W

EXPLOSION PROTECTION

Marking UL844 (North American)

Class I, Div. 1, Groups C, D

Class I, Div. 2, Groups A, B, C,D

Class II, Div. 1, Groups E, F, G

Class II, Div. 2, Groups F, G

Class III

Marine Marking

UL1598, UL1598A

ABS

Other Rating

IP 66

IK 10

>APPLICATIONS

Ocean, marine and aerospace field

• Ocean platform operation facilities and structure

• Aerospace clean room and production

• Ocean vessel operations

Oil and Gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Chemical industry

• All types of paint facilities

• Chemical production and storage

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Other high humidity, high dust, high temperature, vapor locations

>MATERIALS

•Housing: Copper-free aluminum

•Lens: Tempered glass

•Hardware: Stainless steel

•Mounting Bracket: Stainless steel

>DIMENSION
